Specifications |
| |
CAPACITIES
lbs. Condensate per
hour
| |
DIFFERENTIAL PRESSURE
(PSI) |
| Model |
Size
NPT |
PSIG
Orifice |
¼ |
½ |
1 |
2 |
5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
75 |
100 |
125 |
| TA-FT3-15 |
¾" |
.218 |
279 |
369 |
489 |
650 |
785 |
1000 |
1075 |
|
|
|
|
|
|
|
|
| TA-FT4-15 |
1" |
.218 |
279 |
369 |
489 |
650 |
785 |
1000 |
1075 |
|
|
|
|
|
|
|
|
| TA-FT5-15 |
1¼" |
.312 |
600 |
770 |
980 |
1240 |
1640 |
2000 |
2340 |
|
|
|
|
|
|
|
|
| TA-FT6-15 |
1½" |
.500 |
1100 |
1700 |
2400 |
3300 |
5000 |
6600 |
7600 |
|
|
|
|
|
|
|
|
| TA-FT8-15 |
2" |
.625 |
2300 |
2800 |
3600 |
4650 |
6900 |
9000 |
10900 |
|
|
|
|
|
|
|
|
| TA-FT3-30 |
¾" |
.218 |
279 |
369 |
489 |
650 |
785 |
1000 |
1075 |
1210 |
1300 |
1370 |
|
|
|
|
|
| TA-FT4-30 |
1" |
.218 |
279 |
369 |
489 |
650 |
785 |
1000 |
1075 |
1210 |
1300 |
1370 |
|
|
|
|
| TA-FT5-30 |
1¼" |
.228 |
375 |
500 |
690 |
910 |
1200 |
1500 |
1680 |
1800 |
1900 |
2000 |
|
|
|
|
|
| TA-FT6-30 |
1½" |
.390 |
1000 |
1300 |
1700 |
2300 |
3400 |
4600 |
5500 |
6000 |
6600 |
7000 |
|
|
|
|
|
| TA-FT8-30 |
2" |
.500 |
1300 |
1800 |
2500 |
3400 |
5200 |
6800 |
7800 |
8600 |
9300 |
10000 |
|
|
|
|
|
| TA-FT3-75 |
¾" |
.166 |
160 |
213 |
280 |
365 |
520 |
700 |
795 |
875 |
930 |
970 |
1120 |
1230 |
1450 |
|
|
| TA-FT4-75 |
1" |
.166 |
160 |
213 |
280 |
365 |
520 |
700 |
795 |
875 |
930 |
970 |
1120 |
1230 |
1450 |
|
|
|
| TA-FT5-75 |
1¼" |
.312 |
550 |
725 |
960 |
1300 |
1900 |
2650 |
3050 |
3400 |
3700 |
4000 |
4400 |
4750 |
5400 |
|
|
| TA-FT6-75 |
1½" |
.312 |
550 |
725 |
960 |
1300 |
1900 |
2650 |
3050 |
3400 |
3700 |
4000 |
4400 |
4750 |
5400 |
|
|
| TA-FT8-75 |
2" |
.421 |
850 |
1100 |
1500 |
2000 |
3100 |
4150 |
4750 |
5200 |
5500 |
5800 |
6400 |
6800 |
7700 |
|
|
| TA-FT3-125 |
¾" |
.125 |
100 |
135 |
175 |
230 |
330 |
415 |
500 |
585 |
620 |
685 |
750 |
830 |
970 |
1110 |
1190 |
| TA-FT4-125 |
1" |
.125 |
100 |
135 |
175 |
230 |
330 |
415 |
500 |
585 |
620 |
685 |
750 |
830 |
970 |
1110 |
1190 |
| TA-FT5-125 |
1¼" |
.246 |
400 |
520 |
680 |
890 |
1300 |
1700 |
2050 |
2300 |
2500 |
2700 |
3000 |
3200 |
3800 |
4200 |
4500 |
| TA-FT6-125 |
1½" |
.246 |
400 |
520 |
680 |
890 |
1300 |
1700 |
2050 |
2300 |
2500 |
2700 |
3000 |
3200 |
3800 |
4200 |
4500 |
| TA-FT8-125 |
2" |
.332 |
550 |
675 |
880 |
1225 |
1950 |
2600 |
3000 |
3250 |
3500 |
3800 |
4200 |
4600 |
5500 |
6100 |
6600 |
|
|
*Ratings are in
accordance with standards established by The Steam Heating Manufacturers
Association (SHEMA) no safety factor required.
**To convert Square Feet EDR
to pounds of condensate per hour: Divide the square foot ratings by 4.
One Square foot EDR is equivalent to net emission of 240 BTU per hour
with 215°F steam in the radiator surrounded by 70°F air
temperature.
***Basic ratings for trap pressures
greater than 25psi are given in lbs of condensate per hour.
One pound
of condensate is equivalent to approximately 1000 BTU, 1000 BTU is equivalent
to approximately 4 square feet EDR. |
| |
 |
| |
| |

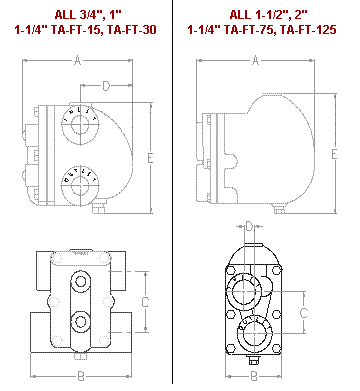

DIMENSIONS
(Inches) |
Weight |
| Model |
Size |
A |
B |
C |
D |
E |
(lbs.) |
| TA-FT3-15 |
¾" |
6.25 |
5.50 |
3.31 |
3.00 |
5.75 |
9 |
| TA-FT4-15 |
1" |
6.25 |
5.50 |
3.31 |
3.00 |
5.75 |
9 |
| TA-FT5-15 |
1¾" |
6.25 |
5.75 |
3.00 |
3.81 |
5.75 |
9½ |
| TA-FT6-15 |
1½" |
8.50 |
4.25 |
3.00 |
0.70 |
8.40 |
18 |
| TA-FT8-15 |
2" |
9.81 |
4.94 |
4.94 |
0.12 |
9.12 |
26 |
| TA-FT3-30 |
¾" |
6.25 |
5.50 |
3.31 |
3.00 |
5.75 |
9 |
| TA-FT4-30 |
1" |
6.25 |
5.50 |
3.31 |
3.00 |
5.75 |
9 |
| TA-FT5-30 |
1¼" |
6.25 |
5.75 |
3.00 |
3.81 |
5.75 |
9½ |
| TA-FT6-30 |
1½" |
8.50 |
4.25 |
3.00 |
0.70 |
8.40 |
18 |
| TA-FT3-75 |
¾" |
6.25 |
5.50 |
3.31 |
3.00 |
5.75 |
9 |
| TA-FT4-75 |
1" |
6.25 |
5.50 |
3.31 |
3.00 |
5.75 |
9 |
| TA-FT5-75 |
1¼" |
8.50 |
4.25 |
3.00 |
0.70 |
8.40 |
18 |
| TA-FT6-75 |
1½" |
8.50 |
4.25 |
3.00 |
0.70 |
8.40 |
18 |
| TA-FT8-75 |
2" |
9.81 |
4.94 |
4.94 |
0.12 |
9.12 |
26 |
| TA-FT3-125 |
¾" |
6.25 |
5.50 |
3.31 |
3.00 |
5.75 |
9 |
| TA-FT4-125 |
1" |
6.25 |
5.50 |
3.31 |
3.00 |
5.75 |
9 |
| TA-FT5-125 |
1¼" |
8.50 |
4.25 |
3.00 |
0.70 |
8.40 |
18 |
| TA-FT6-125 |
1½" |
8.50 |
4.25 |
3.00 |
0.70 |
8.40 |
18 |
| TA-FT8-125 |
2" |
9.81 |
4.94 |
4.94 |
0.12 |
9.12 |
26 |
|
|
|
